The Gerber Universal Tank Lever GA7003654 can work in most of the Gerber Tanks. However, due to the tank's inner components' sizes, a few may be a less ideal fit. Use the following table as a reference
Tank Models | Tank Product Name | Comments | Mechanical Pass / Fail |

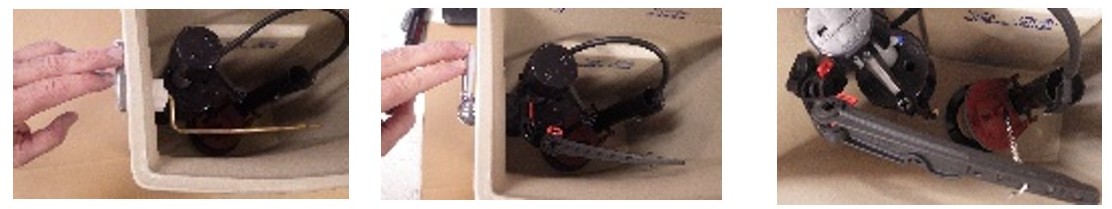

| G0028181 | Hinsdale 1.28gpf Tank 12" Rough-In White | Handle mounts easily, lifts flapper, movement is not touching sides or lid. GA7003654 (Korky) hook in seventh link of chain. | Pass |

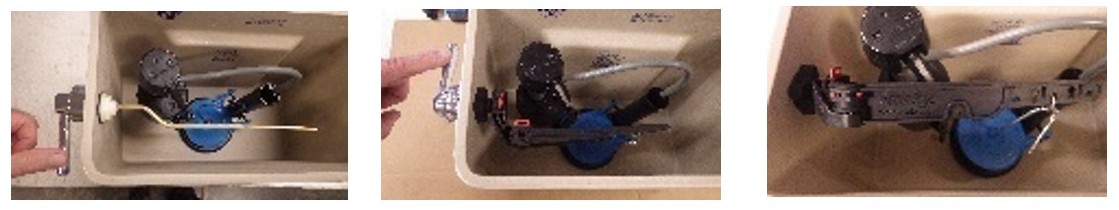

| G0028186 | Wicker Park 1.28gpf Tank 12" Rough-In White | Side mount, but standard handle is forward pointing. Must install GA7003654 (Korky) handle rear pointing to allow function. Does not lift flapper high enough. | Fail |
| G0028196 | Wicker Park 1.28gpf Tank 12" Rough-In White | Side mount, but standard handle is forward pointing. Must install GA7003654 (Korky) handle rear pointing to allow function. Does not lift flapper high enough. | Fail |

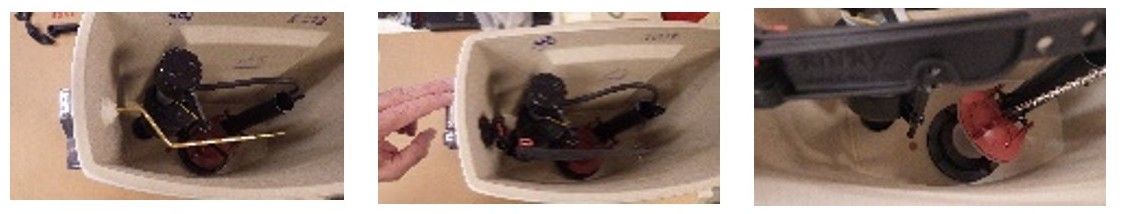

| GAH28890 | Avalanche Elite 1.28gpf 12'' Rough In Tank White | Side mount but forward pointing std. lever. Must install GA7003654 (Korky) rear pointing to allow function. Lifts flapper high enough. Movement clear of objects. GA7003654 (Korky) hook in first link of chain. | Pass |

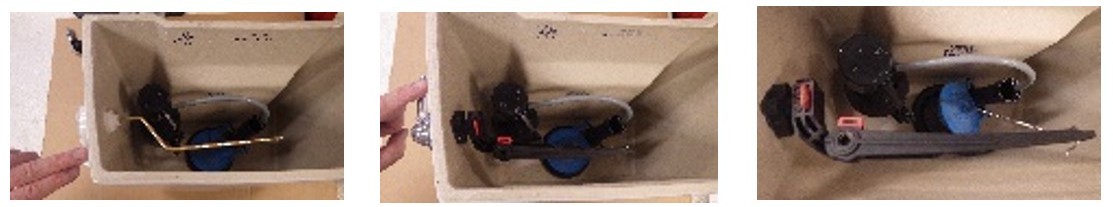

| GHE28530 | Logan Square 1.28gpf Tank 12'' Rough-In White | Side mount but forward pointing std. lever. Must install GA7003654 (Korky) rear pointing to allow function. Lifts flapper well, and movement is clear. GA7003654 (Korky) hook in ninth link of chain. | Pass |

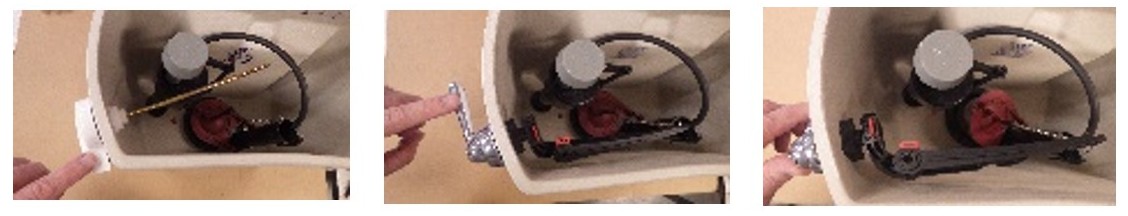

| GWS28890 | Avalanche 1.28gpf Tank 12" Rough-In White | Side mount, forward pointing std lever. Must install GA7003654 (Korky) rear pointing to permit function. Lifts flapper lower than std. lever, and movement is clear. Hook in eighth link of chain. | Fail |

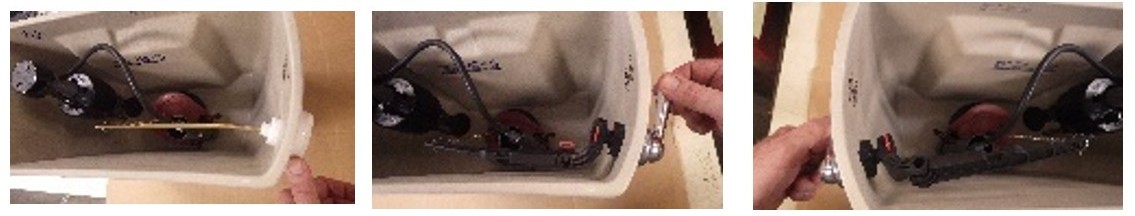

| GWS2889097 | Avalanche 1.28gpf Tank 12" Rough-In Right Hand Lever White | Right Hand Lever. Side mount, forward pointing std. lever. Must install GA7003654 (Korky) rear pointing to allow function. Lifts flapper well but slightly lower than std. Clear movement. Hook in sixth link. | Pass |

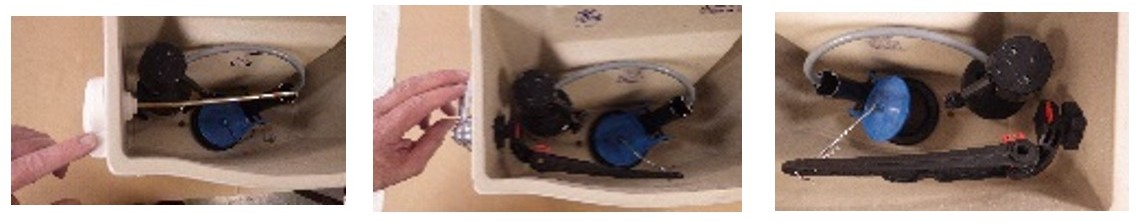

| GHE28580 | Allerton 1.28gpf Tank 12" Rough-In White | Side mount, forward pointing std. lever. Must install GA7003654 (Korky) rear pointing to allow function. Lifts flapper well. Movement clear. GA7003654 (Korky) hook in nineteenth link of chain. | Pass |

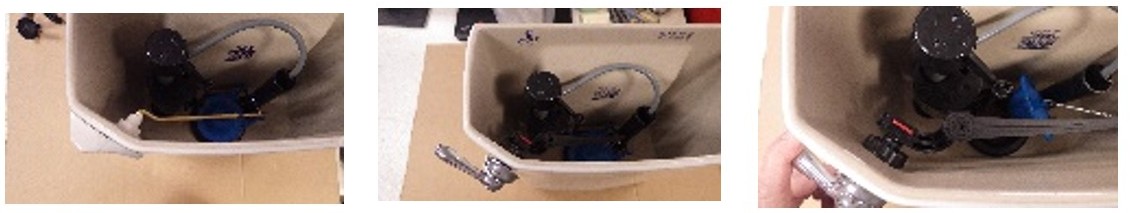

| GWS28590 | Viper 1.28gpf Tank 12" Rough-In White | Left hand, front mount lever. GA7003654 (Korky) mounts easily. Lifts flapper well. Movement clear. GA7003654 (Korky) hook in 24th link of chain. | Pass |

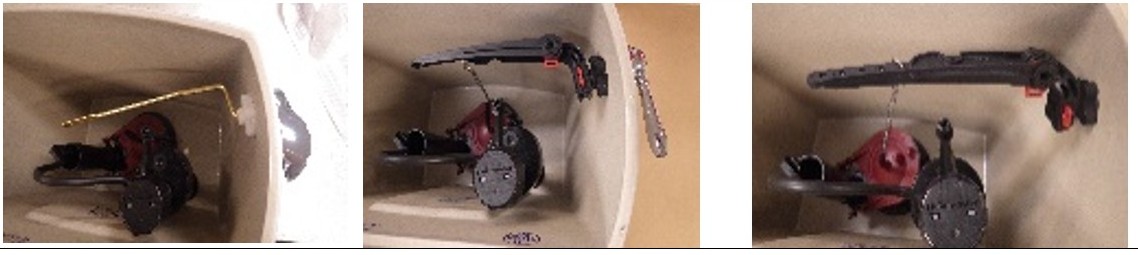

| G0028197 | Lemora 1.28gpf 12" Rough-In Tank | Handle mounts easily, lifts flapper, movement is non-touching, hook in fifth link of chain | Pass |

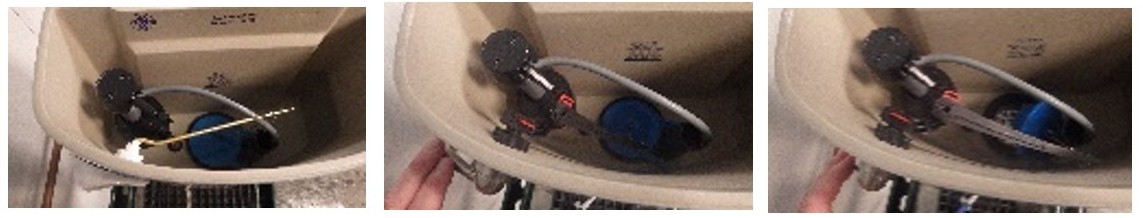

| G0028830 | Avalanche CT 1.28gpf Tank 12" Rough-In White | Left hand, front mount lever. Std. lever allows only 1.0 gpf. GA7003654 (Korky) tricky to mount. Must rotate fill valve 10 deg CCW to clear movement (see photo). GA7003654 (Korky) lever also allows 1.0 gpf. Same. | Pass |

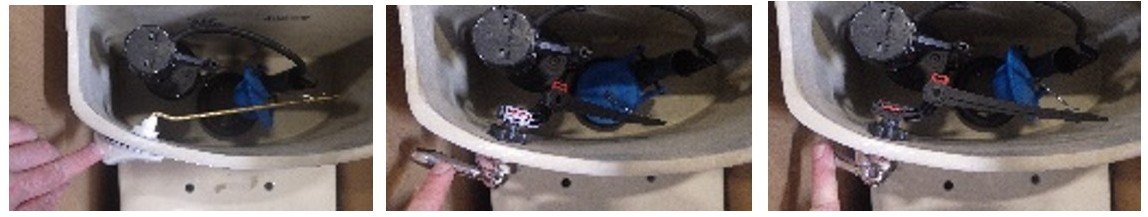

| G0021019 | Avalanche CT 1.28gpf One-Piece Toilet ADA Elongated 12" Rough-In White | Left hand, front mount lever. Handle mounts easily, lifts flapper high, movement is not touching sides or lid. GA7003654 (Korky) hook in fifth link of chain. | Pass |

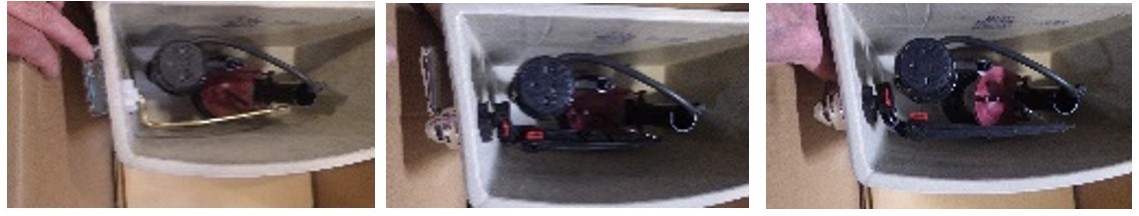

| G0021187CT | Burr Ridge 1.28gpf ADA EL 1pc CT Toilet 12" Rough-In White | Left hand, side mount. Handle mounts easily, lifts flapper, movement is non-touching. GA7003654 (Korky) hook in seventh link of chain. | Pass |

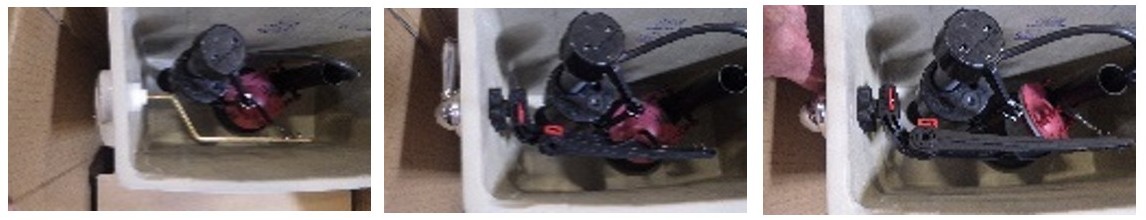

| G0021020 | Logan Square 1.28gpf 1pc ADA Elongated Simple CT Toilet 12" Rough-In White | Left hand, side mount. Handle mounts easily, lifts flapper, movement is non-touching. GA7003654 (Korky) hook in last link of the chain. | Pass |

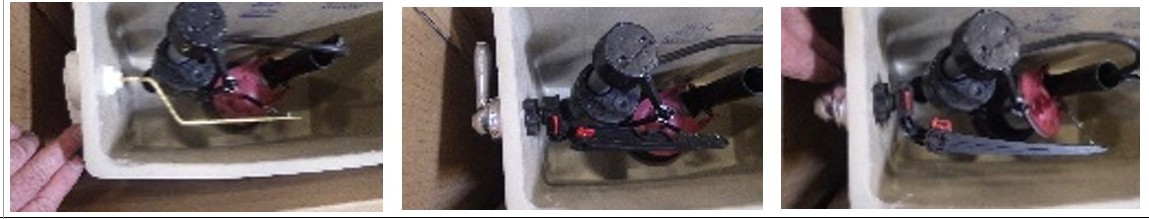

| G0021021 | Lemora 1.28gpf 1pc ADA Elongated CT Toilet 12" Rough-In White | Left hand, side mount. Handle mounts easily, lifts flapper. Movement is non-touching. GA7003654 (Korky) hook in fifth link of chain. | Pass |

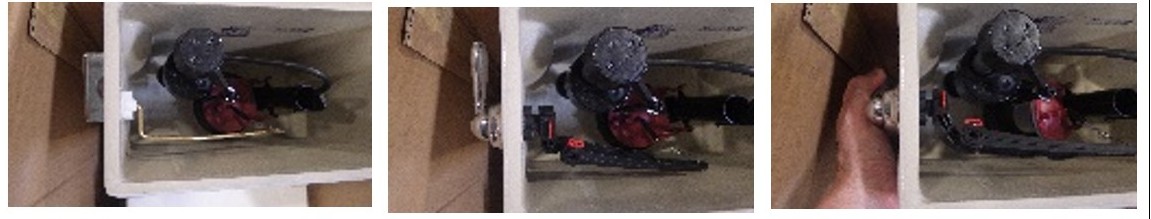

| G0021221 | Wicker Park 1.28gpf One Piece Toilet ADA Elongated White | Left hand, side mount. Handle mounts easily, lifts flapper, movement is non-touching. Hook in third link of chain. | Pass |

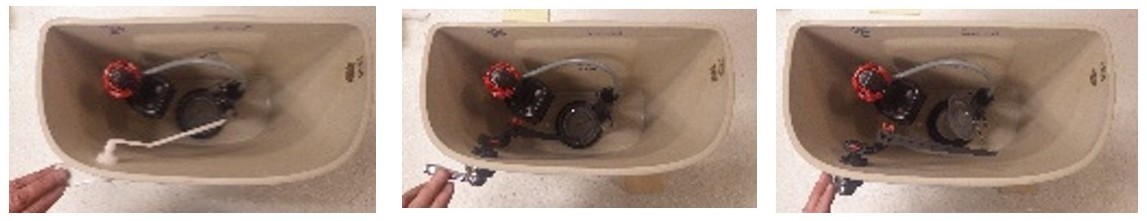

| GMX28990 | Maxwell 1.6gpf Tank 12" Rough-in White | Left hand, front mount. Handle mounts easily, lifts flapper, movement is non-touching. Hook in tenth link of chain. | Pass |
