* Images used in this article may not look exactly the same as your product. However, the following steps are common for similar types of push buttons.
Installation Instructions for Push Button

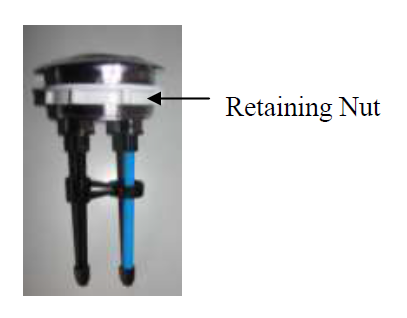

- Before installing the push button, loosen and remove the retaining nut.

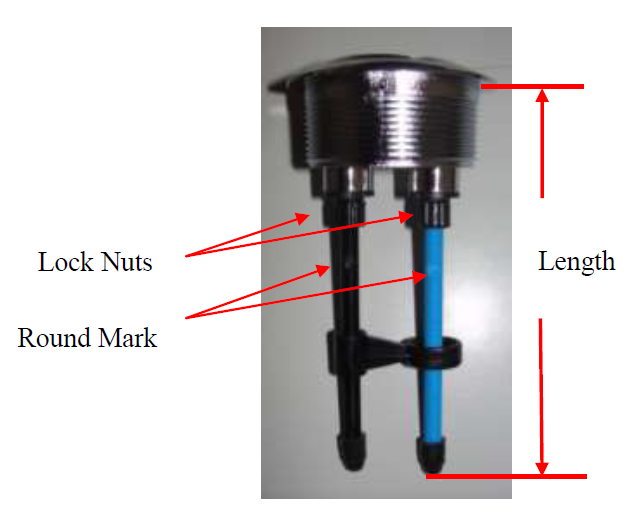

- Check if the threaded rods are adjusted to the right length.
Table 1: Standard Rod lengths for Model.
| Model No, |
Gerber Push Button
Part No.
|
Length |
|
DF-28-190 (GDF28190)
DF-28-192 (GDF28192)
DF-28-194 (GDF28194)
DF-28-195 (GDF28195)
|
G0099792
|
130±2 mm |
| DF-28-591 (GDF28591) | GA700383 | 152±3mm |
The rod length can be adjusted by tightening/loosening two lock nuts.
If the push button rods are bent out of shape and no longer able to bend back straight, or it is broken, the push button assembly should be replaced.
If you are unaware of the part number of the push button assembly for your toilet, please contact us.
