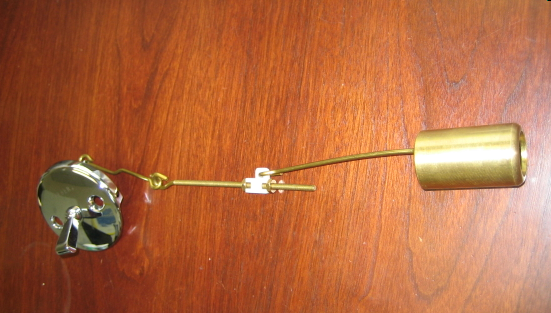

Gerber Trip lever drains have pre-adjustable linkage. This allows the plumber to set up the linkage for fit to the stopper before inserting it into the overflow tube.
Adjusting the Gerber trip lever linkage:
- Remove the linkage from the drain pipe.

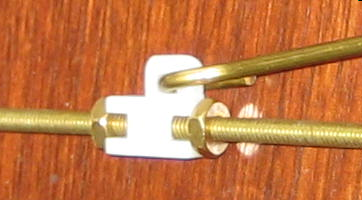

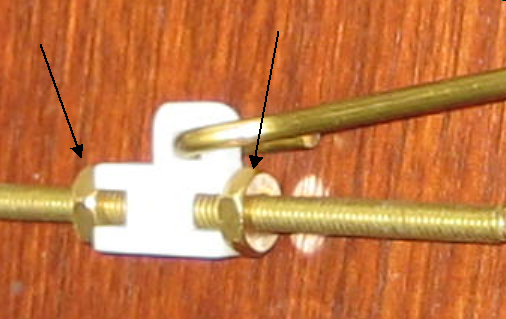

- Notice the threading on the linkage with the 2 supporting bolts:

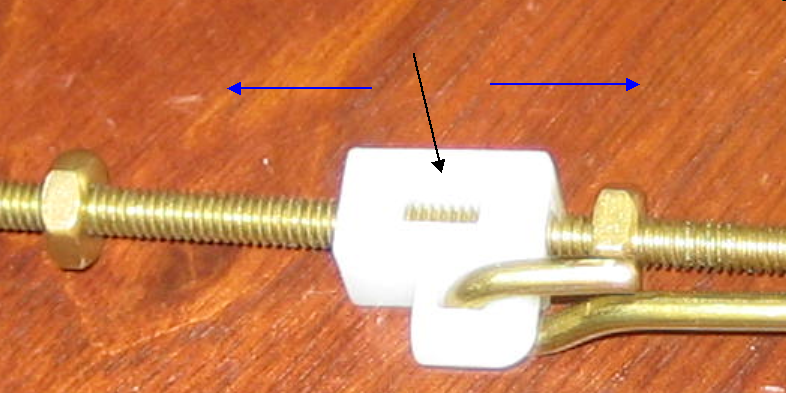

- Lower the linkage bolt and twist the white plastic connector by unscrewing or screwing it depending on the required height.
- Re-tighten the 2 bolts to hold in place when the desired height is achieved.
Below is a link to a YouTube video of How2Plumb, which shows how to adjust a bathtub trip lever drain:
For more information on the Gerber tub drain offering, please visit Gerber website.
