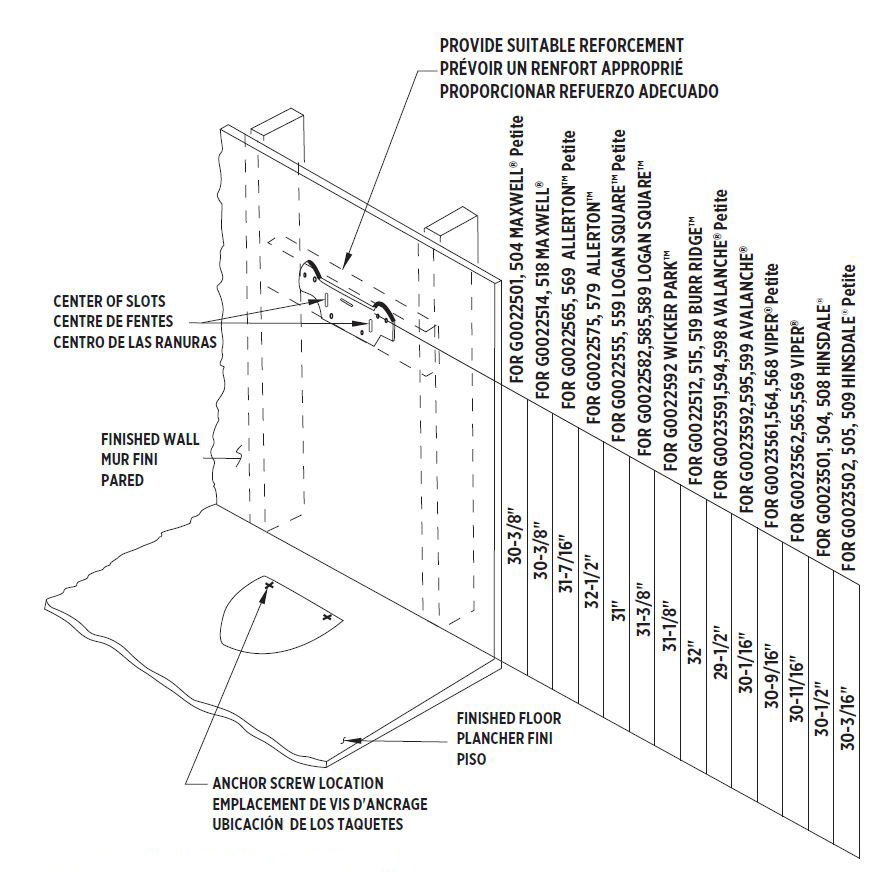

Dessin détaillé des dimensions

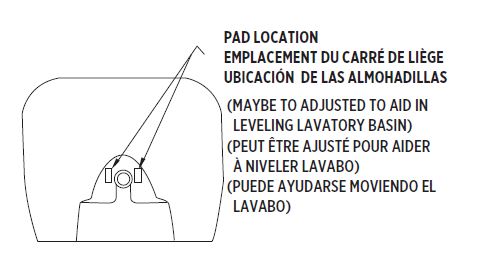

- Mettre un carré de liège de chaque côté du lavabo à l´intérieur du cercle de la colonne.
- Mesurer à partir du plancher pour déterminer la position de la partie supérieure du support (la hauteur des différents types de colonne est indiquée sur l´illustration).

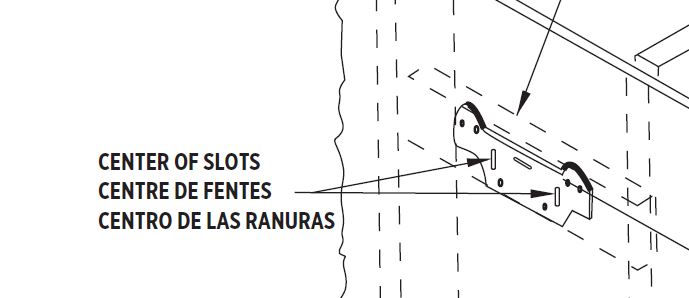

- Il est possible de régler les vis centrales dans les fentes verticales du support pour convenir au lavabo.
- Mettre la colonne sous le lavabo.
- Suspendre le lavabo,puis monter ou descendre le support pour obtenir la hauteur appropriée. Marquer l´emplacement des vis d´ancrage.
- Enlever le lavabo, installer les raccords et ajouter les vis supplémentaires au support de lavabo (installer également la garde d´eau du siphon à l´about).
- Suspendre de nouveau le lavabo, mettre de niveau et installer les vis d´ancrage dans les trous prévus à cet effet à l´arrière du lavabo.
- Installer les vis d´ancrage fixant la colonne au plancher.
- Raccorder le siphon, les conduites d´eau, etc.
Remarque: Prévoir un renfort approprié pour tous les supports muraux.
Pour des informations détaillées sur les mesures, veuillez consulter le manuel d’installation sur la page du produit spécifique pour lavabo sur colonne sur le site Web de Gerber.
29-840 Standard Height Pedestal
29-841 ErgoHeight™ Pedestal
29-842 MAXWELL™ Pedestal
29-843 ALLERTON™ Pedestal
29-844 PICTURESQUE™ Pedestal
29-845 WICKER PARK™ Pedestal
29-846 BRIANNE™ Pedestal
29-847 LOGAN SQUARE™ Pedestal
29-848 BLAZE™ Pedestal
29-834 AVALANCHETM & VIPERTM Pedestal
29-841 ErgoHeight™ Pedestal
29-842 MAXWELL™ Pedestal
29-843 ALLERTON™ Pedestal
29-844 PICTURESQUE™ Pedestal
29-845 WICKER PARK™ Pedestal
29-846 BRIANNE™ Pedestal
29-847 LOGAN SQUARE™ Pedestal
29-848 BLAZE™ Pedestal
29-834 AVALANCHETM & VIPERTM Pedestal
22-504 MAXWELL™ Consists of 12-504 Lavatory & 29-842 Pedestal
22-514 MAXWELL™ Consists of 12-514 Lavatory
22-534 La Mer Petite Consists of 12-524 Lavatory & 29-840 Pedestal
22-554 La Mer Consists of 12-544 Lavatory
22-558 La Mer Consists of 12-548 Lavatory
22-574 La Rive Consists of 12-564 Lavatory
22-578 La Rive Consists of 12-568 Lavatory
22-594 La Rive Petite Consists of 12-584 Lavatory
22-598 La Rive Petite Consists of 12-588 Lavatory
22-565 ALLERTON ™ Petite Consists of 12-565 Lavatory & 29-843 Pedestal
22-569 ALLERTON ™ Petite Consists of 12-569 Lavatory
22-575 ALLERTON ™ Consists of 12-575 Lavatory
22-579 ALLERTON ™ Consists of 12-579 Lavatory
22-535 BRIANNE ™ Petite Consists of 12-535 Lavatory & 29-846 Pedestal
22-539 BRIANNE ™ Petite Consists of 12-539 Lavatory
22-545 BRIANNE ™ Consists of 12-545 Lavatory
22-549 BRIANNE ™ Consists of 12-549 Lavatory
22-529 PICTURESQUE ™ Consists of 12-529 Lavatory & 29-844 Pedestal
22-555 LOGAN SQUARE™ Petite Pedestal 12-555 Consists of 29-847 "
22-559 LOGAN SQUARE™ Petite Pedestal 12-559 Consists of Lavatory &
22-585 LOGAN SQUARE™ Consists of 12-585 Lavatory
22-589 LOGAN SQUARE™ Consists of 12-589 Lavatory
22-592 WICKER PARK™ Consists of 12-592 Lavatory & 29-845 Pedestal
22-599 WICKER PARK™ Consists of 12-599 Lavatory
22-512 BLAZE™ Consists of 12-512 Lavatory & 29-848 Pedestal
22-515 BLAZE™ Consists of 12-515 Lavatory
22-519 BLAZE™ Consists of 12-519 Lavatory
23-591 AVALANCHE™ Consists of 13-591 Lavatory & 29-834 Pedestal
23-592 AVALANCHE™ Consists of 13-592 Lavatory
23-594 AVALANCHE™ Consists of 13-594 Lavatory
23-598 AVALANCHE™ Consists of 13-598 Lavatory
23-599 AVALANCHE™ Consists of 13-599 Lavatory
23-595 AVALANCHE™ Consists of 13-595 Lavatory
23-561 VIPER™ Consists of 13-561 Lavatory
23-564 VIPER™ Consists of 13-564 Lavatory
23-568 VIPER™ Consists of 13-568 Lavatory
23-562 VIPER™ Consists of 13-562 Lavatory
23-565 VIPER™ Consists of 13-565 Lavatory
23-569 VIPER™ Consists of 13-569 Lavatory
22-514 MAXWELL™ Consists of 12-514 Lavatory
22-534 La Mer Petite Consists of 12-524 Lavatory & 29-840 Pedestal
22-554 La Mer Consists of 12-544 Lavatory
22-558 La Mer Consists of 12-548 Lavatory
22-574 La Rive Consists of 12-564 Lavatory
22-578 La Rive Consists of 12-568 Lavatory
22-594 La Rive Petite Consists of 12-584 Lavatory
22-598 La Rive Petite Consists of 12-588 Lavatory
22-565 ALLERTON ™ Petite Consists of 12-565 Lavatory & 29-843 Pedestal
22-569 ALLERTON ™ Petite Consists of 12-569 Lavatory
22-575 ALLERTON ™ Consists of 12-575 Lavatory
22-579 ALLERTON ™ Consists of 12-579 Lavatory
22-535 BRIANNE ™ Petite Consists of 12-535 Lavatory & 29-846 Pedestal
22-539 BRIANNE ™ Petite Consists of 12-539 Lavatory
22-545 BRIANNE ™ Consists of 12-545 Lavatory
22-549 BRIANNE ™ Consists of 12-549 Lavatory
22-529 PICTURESQUE ™ Consists of 12-529 Lavatory & 29-844 Pedestal
22-555 LOGAN SQUARE™ Petite Pedestal 12-555 Consists of 29-847 "
22-559 LOGAN SQUARE™ Petite Pedestal 12-559 Consists of Lavatory &
22-585 LOGAN SQUARE™ Consists of 12-585 Lavatory
22-589 LOGAN SQUARE™ Consists of 12-589 Lavatory
22-592 WICKER PARK™ Consists of 12-592 Lavatory & 29-845 Pedestal
22-599 WICKER PARK™ Consists of 12-599 Lavatory
22-512 BLAZE™ Consists of 12-512 Lavatory & 29-848 Pedestal
22-515 BLAZE™ Consists of 12-515 Lavatory
22-519 BLAZE™ Consists of 12-519 Lavatory
23-591 AVALANCHE™ Consists of 13-591 Lavatory & 29-834 Pedestal
23-592 AVALANCHE™ Consists of 13-592 Lavatory
23-594 AVALANCHE™ Consists of 13-594 Lavatory
23-598 AVALANCHE™ Consists of 13-598 Lavatory
23-599 AVALANCHE™ Consists of 13-599 Lavatory
23-595 AVALANCHE™ Consists of 13-595 Lavatory
23-561 VIPER™ Consists of 13-561 Lavatory
23-564 VIPER™ Consists of 13-564 Lavatory
23-568 VIPER™ Consists of 13-568 Lavatory
23-562 VIPER™ Consists of 13-562 Lavatory
23-565 VIPER™ Consists of 13-565 Lavatory
23-569 VIPER™ Consists of 13-569 Lavatory
