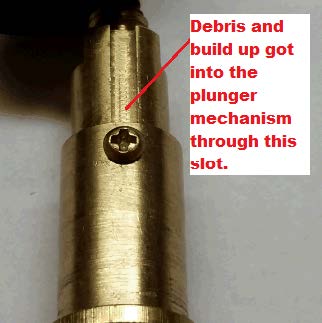

Cause - During usage, especially in hard water conditions, water/debris easily gets into the mechanism slot as shown below, causing it to get stuck or build-ups that make it hard to operate.
Solution:
Immediate (temporary):

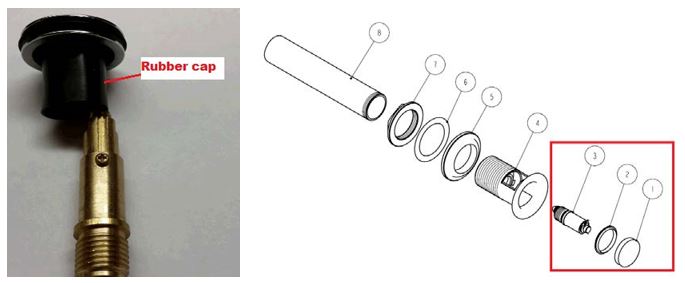

Send out DA613156 (per finish), the entire assembly is easy change out, under a few minutes, and the rubber cap should protect the mechanism from any debris getting into the slot.
Immediate (temporary):
Send out DA613156 (per finish), the entire assembly is easy change out, under a few minutes, and the rubber cap should protect the mechanism from any debris getting into the slot.
Permanent solution:

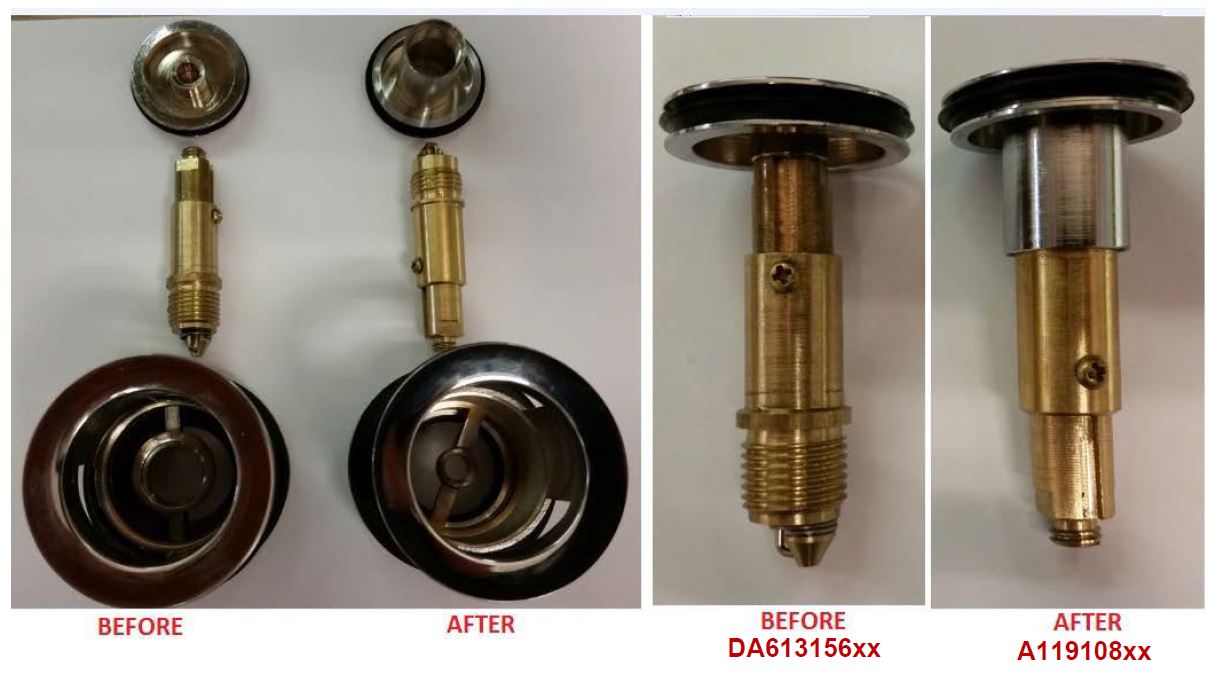

Factory solution is to redesign the plunger mechanism to be positioned upside down and having a protective cap on the trim of the drain cap. ECR was approved in Feb, 2016. This solution is not interchangeable with current drain, therefore will continue providing a temporary solution if the customer does not want to reinstall the complete drain assembly. The part number for the improved plunger assembly is A119108xx (CP, BL, CZ, NP finishes).
Factory solution is to redesign the plunger mechanism to be positioned upside down and having a protective cap on the trim of the drain cap. ECR was approved in Feb, 2016. This solution is not interchangeable with current drain, therefore will continue providing a temporary solution if the customer does not want to reinstall the complete drain assembly. The part number for the improved plunger assembly is A119108xx (CP, BL, CZ, NP finishes).
