For Single Handle Lavatory faucets:
- Pull out the rubber button (part #1).
- Use a hex wrench to unscrew counter-clockwise to loosen the set screw (part #1).
The set screw size is M5-0.8 x 5L X H2.5. - Then pull out the main handle (part #2). If still hard to be pulled away, loosen the set screw again.
For Two Centerset and Widespread Lavatory faucets or Roman Tub faucets:
- Pull out the rubber button (part #2).
- Use a hex wrench to unscrew counter-clockwise to loosen the set screw (part #2).
The set screw size is M5-8g x 6L X H2.5. - Then pull out the main handle (part #1). If still hard to be pulled away, loosen the set screw again.

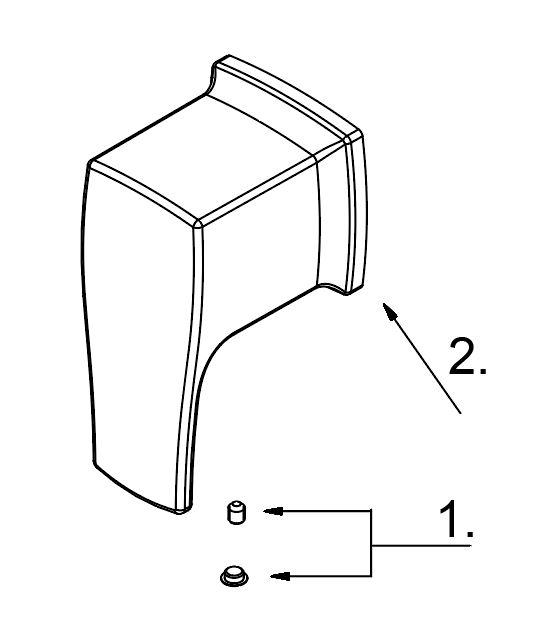

For Showers faucets:
- Pull out the rubber button (part #1).
- Use a hex wrench to unscrew counter-clockwise to loosen the set screw (part #1).
The set screw size is M5-8g x 6L X H2.5. - Then pull out the main handle (part #2). If still hard to be pulled away, loosen the set screw again.

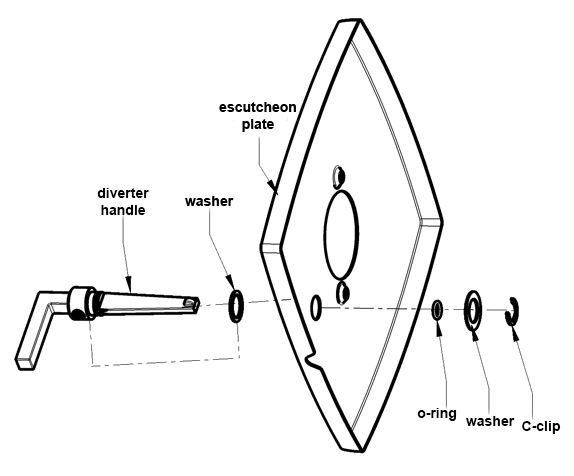

For Diverter Handle on Escutcheon Plate:
- The diverter handle is secured to the escutcheon plate with a C-clip. To remove it, you will need to remove the volume control handle, the handle trim ring and the escutcheon plate from the shower valve first.
- Once removed, use two small, flat-bladed screwdrivers to aid in the removal of the C-clip.
- On the back of the escutcheon, use one screwdriver blade at one end of the C-clip to keep it from turning and use the other screwdriver blade to push the C-clip end down and out of the groove.
- With the C-clip removed, be careful to retain the rubber O-ring and metal washer which were under the C-clip.
- Remove the diverter handle and retain the small black plastic washer which is found on the handle.
