How to remove Allerton handle

G Admin
Updated

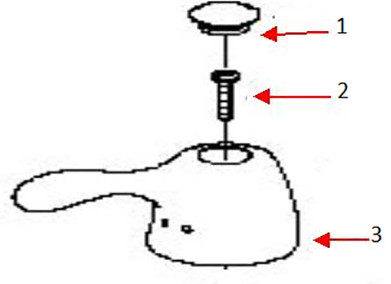

For Kitchen and Lavatory faucets:


  1. Unscrew and pull out the cap (part #1).
  2. Unscrew the set screw (part #2) by applying Philips or flat screwdriver, counter-clockwise.
  3. Then pull off the handle   (part # 3)

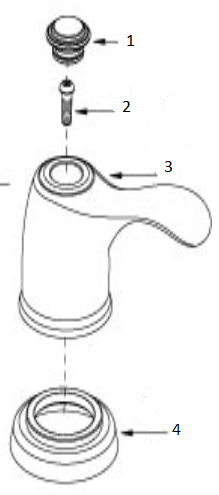

For Roman Tub Faucets




  1. Unscrew and pull out the cap (part #1).
  2. Unscrew the set screw (part #2) by applying Philips or flat screwdriver, counter-clockwise.
  3. Unscrew the handle (part # 3) from the trim ring  (part # 4) counter-clockwise.

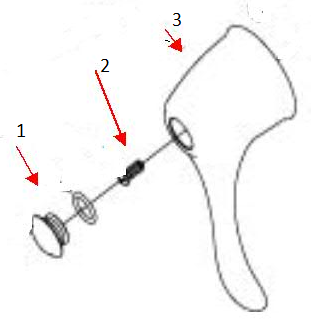

For Showers

  1. Unscrew and pull out the cap (part #1).
  2. Unscrew the set screw (part #2) by applying Philips or flat screwdriver, counter-clockwise.
  3. Then pull out the handle (part # 3)
