How to remove Gerber Classics Handle?

G Admin
Updated

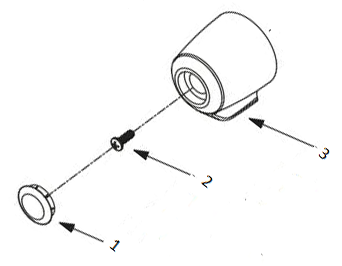

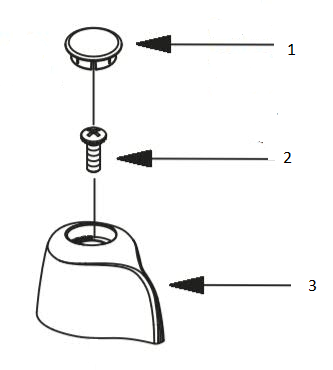

For Kitchen and Two Handle Lavatory Faucets

Metal Handles Metal Fluted Handles

  1. Pull out the index button (part #1)
  2. Unscrew the screw (part # 2) counter-clockwise using Philips or a flat-head screwdriver.
  3. Pull off the handle assembly (part #3).

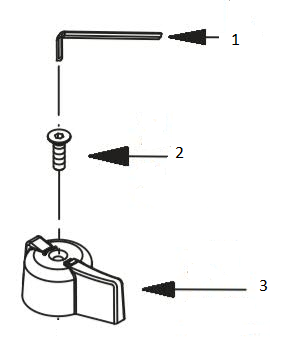

For Wall Mount Kitchen Faucets


  1. Use a hex wrench (part #1) to unscrew counter-clockwise to remove the set screw (part #2).
    The hex wrench is 2.5 mm head or 1/8".
  2. Then pull off the main handle (part # 3).

For Single Handle Shower

  1. Pull out the rubber button ( part #1)
  2. Use a hex wrench (part #4) to unscrew counter-clockwise to remove the set screw (part #2).
    The hex wrench is 2.5 mm head or 1/8".
  3. Then pull out the main handle (part # 4).

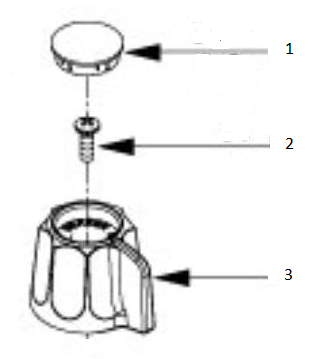

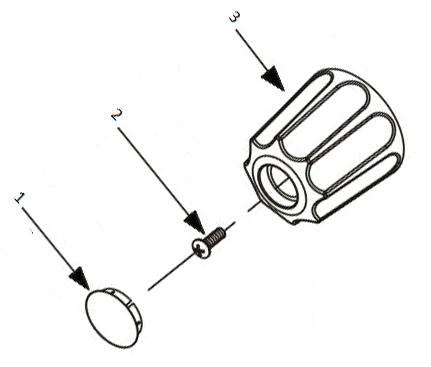

For Two-Handle and Three-Handle Showers

Metal Handles Metal Fluted Handles


  1. Pull out the index button  (part #1)
  2. Unscrew the screw (part # 2) counter-clockwise using Philips or a flat-head screwdriver.
  3. Pull off the handle assembly (part #3).
