How to remove Commercial Handles?

G Admin

Updated 15 February 2025 03:58

For Two Handle Kitchen, Laundry and Two Lavatory Faucets (Deck and Wall Mounted)

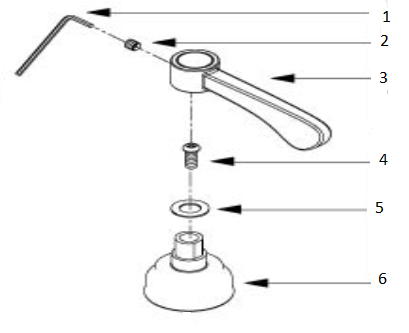

Lever Handle

Use a hex wrench (part #1) to unscrew counter-clockwise to loosen the set screw (part #2).
The hex wrench is 2.5 mm head or 1/8".
Then pull out the main handle (part # 3).
If still hard to be pulled away, loosen the set screw again.
To remove the handle canopy (part #6), unscrew the set screw (part #4) using a Phillips or a flat-head screwdriver. Pull off the handle canopy.

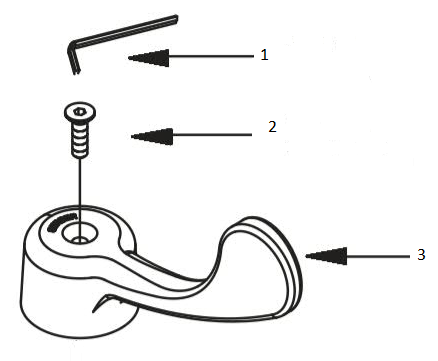

Wrist Blade Handle

Use a hex wrench (part #1) and unscrew counter-clockwise the set screw (part #2).
The hex wrench is 0.125" head
Then pull off the main handle (part # 3).

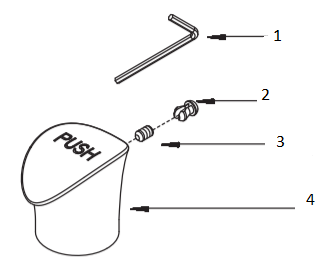

For Metering Faucets

Pull out the rubber button (part #2)
Use a hex wrench (part #1) to unscrew counter-clockwise to loosen the set screw (part #2).
The hex wrench is 2.5mm head or 1/8".
Then pull out the handle (Part #3).
If still hard to be pulled away, then loosen the set screw again.
