How to remove South Sea handle?

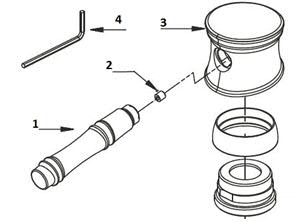

For Single Handle Lavatory Faucets:


  1. Turn the lever handle (part #1) counter-clockwise until it is removed.
  2. Use a hex wrench (part # 4) to unscrew the set screw (part #2) counter-clockwise.
    The hex wrench is 2.5 mm head or 1/8".
  3. Then pull down the handle (part #3). If still hard to be pulled away, loosen the set screw more.

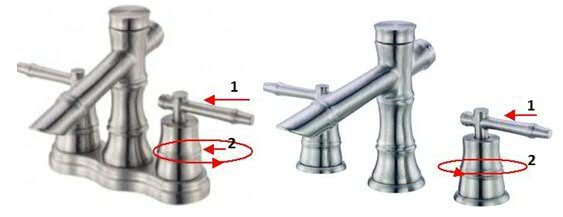

For 2-Handle Faucets:


  1. Hold the lever handle (part #1) at the OFF position.
  2. While holding the lever, turn the handle canopy (part #2) counter-clockwise by hand until the handle assembly is completely removed.

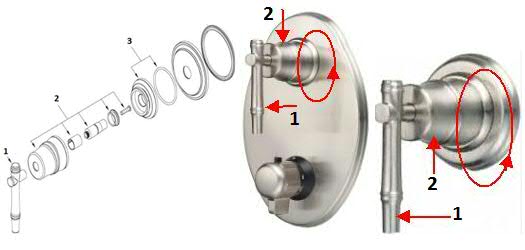

For Single Handle Pressure Balance Shower:

  1. Hold the lever handle (part #1) at the OFF position (facing down).
  2. While holding the lever, turn the handle canopy (part #2) counter-clockwise by hand until the handle assembly is completely removed.

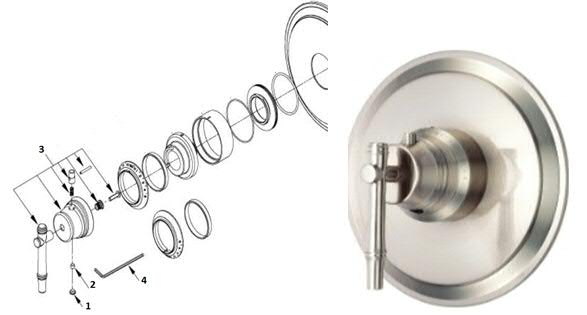

For 3/4" Thermostatic Shower:


  1. Pull the rubber button (part #1).
  2. Use a hex wrench (part #4) to unscrew the set screw (part #2) counter-clockwise.
  3. Pull out the handle (part #3).



For 3/4" Volume Control, 4-Port Diverter or 1/2" Thermostatic Valve:


  1. Hold the lever handle (part #1) at the OFF position (facing down).
  2. While holding the lever handle, turn the handle canopy (part # 2) counter-clockwise by hand until the handle is completely removed from the handle trim ring (part #3).
