How to remove South Shore handle?

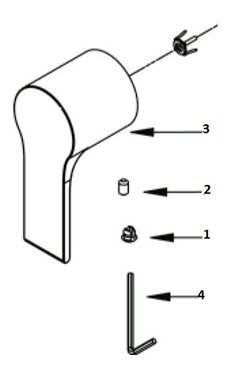

For Lavatory Single Handle:

1. Pull out the rubber button (part #1).
2. Use a hex wrench (part #4) to unscrew the set screw (part #2) counter-clockwise.
   The hex wrench is 2.5 mm head or 1/8".
3. Then pull out the main handle (part #3).
   If still hard to be pulled away, loosen the set screw more.

For Two Handle Widespread Lavatory :

1. Turn the water off under the sink (hot and cold supply lines).
2. Support the handle valve body under the sink. The handle valve body will fall off when the handle is removed.
3. Turn the handle ring (part #1) counter-clockwise by hand until the handle can be removed completely. If you are unable to remove the handle ring with your hand, you can put a cloth around the ring and use a pair of pliers or an adjustable wrench to loosen it.

For Showers:

1. Pull out the rubber button (part #1).
2. Unscrew the handle set screw (part #2) counter-clockwise using a hex wrench (part #4).
   The hex wrench is 2.5 mm head or 1/8".
3. Pull out the handle (part #3).
